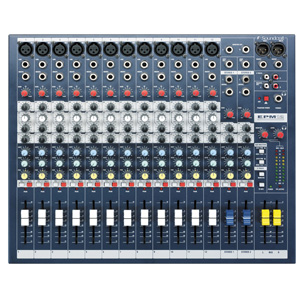

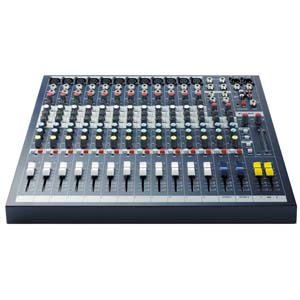

- EPM 12 (12 mono + 2 stereo)
• 정밀한 GB30 마이크 프리앰프
• +48V 팬텀파워
• 2개의 설정가능한 AUX 버스
• 3밴드 EQ, 중역대에 주파수 설정 가능(모노입력)
• 2밴드 EQ, 스테레오 입력
• 모든 모노 입력에 인서트단
• 랙에 간단하게 마운트 가능
TYPICAL SPECIFICATIONS
Frequency Response
|
Mic/ Line Input to any Output . . . . . . . . . . . . .+/-0.5dB, 20Hz – 20kHz
|
T.H.D.
|
Mic Sensitivity -30dBu, +14dBu @ Mix output . . . . . .< 0.007% @ 1kHzNoise
|
Noise
|
Mic Input E.I.N. (maximum gain) . . . . . . . . . . .-128dBu (150Ω source)Aux, Mix and Masters (@ max, faders down) . . . . . . . . . . . . . .< -85dBuCrosstalkChannel
|
DIMENSIONS & WEIGHT
Height
|
All frame sizes . . . . . . . . . . . . . . . . . . . .91mm (3.6")
|
Width
|
EPM6 . . . . . . . . . . . . . . . . . . . . . . . . .280mm (11.0")
EPM8 . . . . . . . . . . . . . . . . . . . . . . . . .330mm (13.0")
EPM12 . . . . . . . . . . . . . . . . . . . . . . . .432mm (17.0")
|
Depth
|
All frame sizes . . . . . . . . . . . . . . . . . .362mm (14.3")
|
Weight
|
EPM6 . . . . . . . . . . . . . . . . . . . . . . . . .4.0kg (8 .8 lbs)
EPM8 . . . . . . . . . . . . . . . . . . . . . . . .4.6kg (10.1 lbs)
EPM12 . . . . . . . . . . . . . . . . . . . . . . .5.8 kg (12.8 lbs)
|
|
